全固体電池評価用コインセル- EQ-PSC

Pressure Controlled Split Coin Cell with Optional Size upto 20 MPa For SSB Research – EQ-PSC



価格 : お問い合わせください
アイテムナンバー EQ-PSC

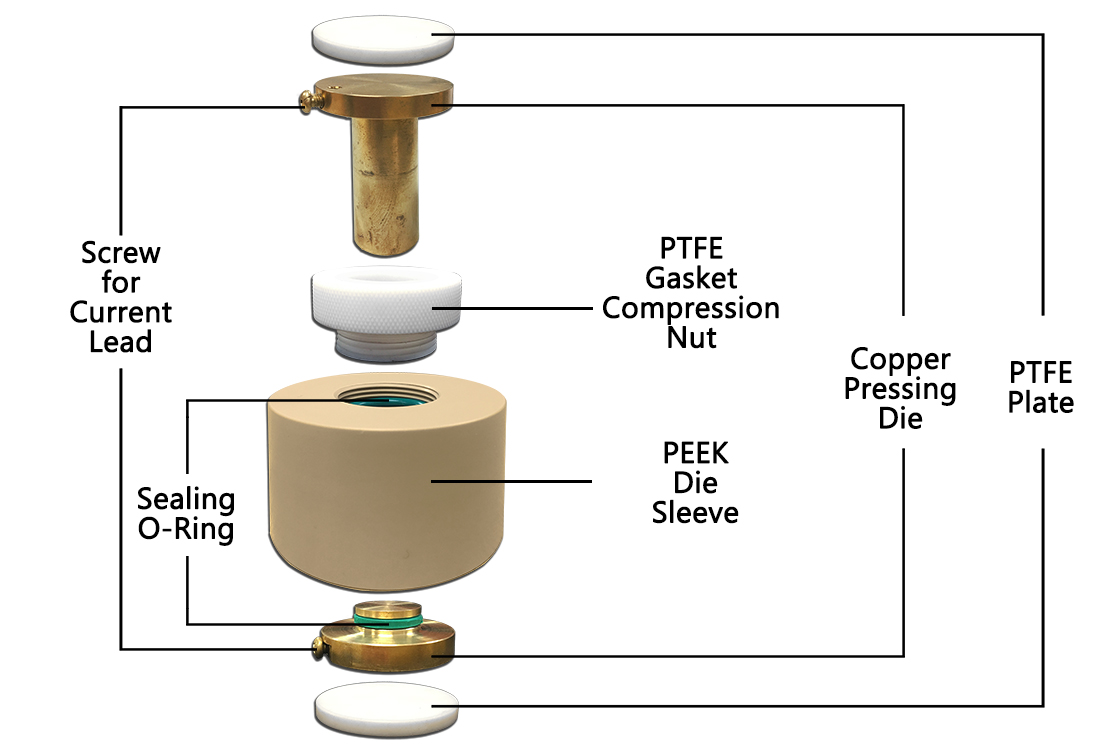

EQ-PSC is a split-able coin cell set with a sleeve made out of Nylon or PEEK. The split cell can be placed in a lab press and applied pressure up to 20 MPa, which is designed for researching the effect of pressure on solid-state battery performance. It can also be used for easy coin cell assembling without any screw and crimping tool. It can be customized into various sizes (8, 10, 12, 15, 20, and 25 mm diameter) to accept all sizes of electrodes and separators.
Note: Customized (Au coated) test cells are non-returnable and non-exchangeable.
MTI has granted the patent 2016205216100 for the Pressure Controlled (up to 20 MPa) Split Coin Cell – EQ-PSC since June 2016.



<商品動画>

<商品詳細>

Please view “J. Electrochem. Soc.-2013-Piper-A77-81” published by Journal of The Electrochemical Society, 160 (1) A77-A81 (2013) for reference.

下記の米国MTI社サイトにてご確認ください。
※お見積もりをご依頼の際には、米国MTI社サイトをご確認のうえ、オプションの「Sleeve Inner Size」と「Material」をお知らせください。



▽さらに詳しい商品の仕様については下記リンク先(米国MTI社サイト)をご確認ください。

Pressure Controlled Split Coin Cell with Optional Size upto 20 MPa For SSB Research – EQ-PSC

ご興味を持たれた商品のお問い合わせ・お見積もりはMTI Japanへお願い致します。

MTI-Japan問い合わせフォーム



<ご案内>
基本的に、アメリカで販売されている商品をそのままお届けします。
商品の配送はいわゆる車上渡しになります。
電力・ガスなどを必要とする商品については、設置を担当される部署やお付き合いのある設備会社へご相談ください。
消費電力が小さい商品は、変圧器(オプション)にてご使用いただける場合もありますので弊社へご相談ください。
規制により輸入できない商品が一部ございます。





■お問い合わせ・お見積もり
